Feeders

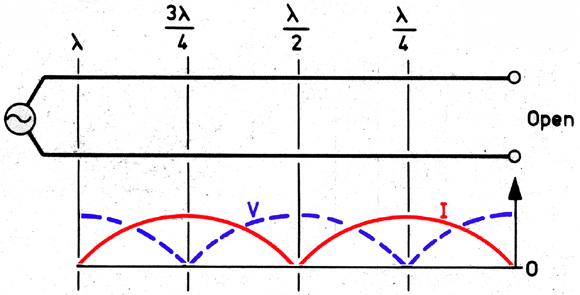

• With an open circuit line the open circuit appears at half wavelength intervals from the load
• At quarter wavelength intervals the open circuit is transformed into a short circuit
