Feeders

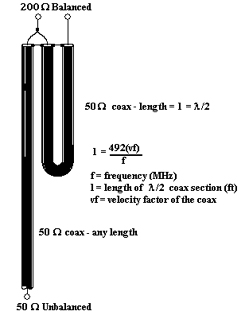

4:1 Transmission Line Voltage Balun

  • This voltage balun is constructed solely from transmission line and requires no cores
  • Unlike the transformer-type baluns, this balun may be used only over a narrow range of frequencies
  • The extra half wave section causes the voltage at its output to be equal and opposite to the voltage at the input
