Antennas

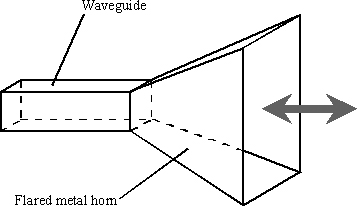

• Used at microwaves, can be regarded as “flared out” or “opened out” waveguides
• Produces a larger effective aperture (capture area) than that of the waveguide itself and hence gain and greater directivity
